Industry Technology Pain Point Opening: The "Stranglehold" Dilemma of Stamping Fricting Blade Precision Challenges

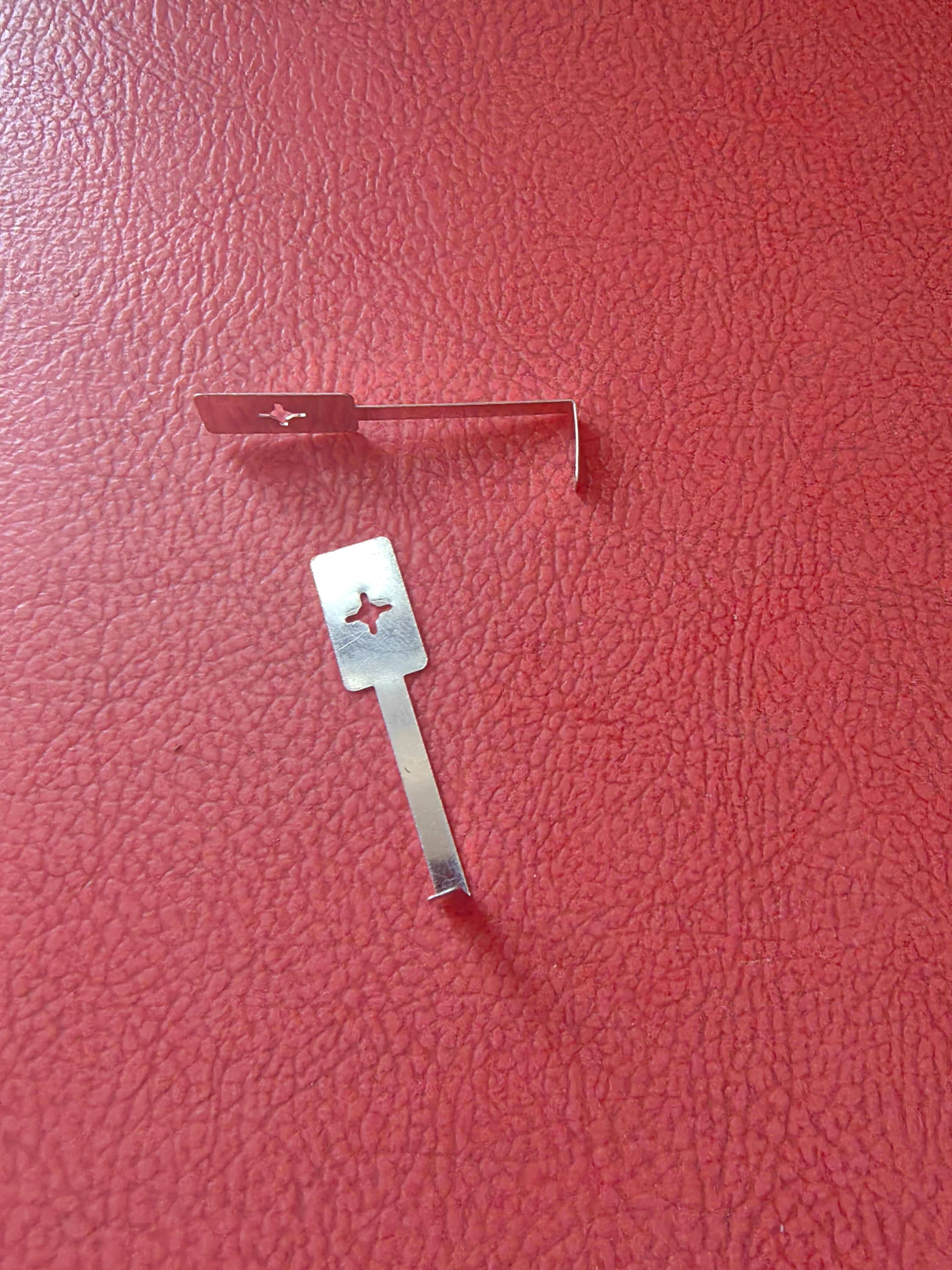

Stamping shavings, as precision metal fasteners, are widely used in electronics, automotive, home appliances, and other fields. Their core performance indicators, such as dimensional accuracy, directly affect product stability and service life. However, the industry普遍 faces three major technical challenges: Firstly, material springback control is difficult; high elasticity metals (such as stainless steel, beryllium copper) are prone to dimensional deviation due to stress release during stamping, with accuracy fluctuations of ±0.05mm or more. Secondly, die life is short; complex-shaped shavings require high-precision dies, but frequent stamping can easily lead to die wear, and the lifespan of a single die is usually less than 500,000 times. Thirdly, batch consistency is poor; during small-scale production, errors can be compensated for by manual calibration, but in mass production, factors such as equipment vibration and temperature changes can cause the pass rate of products to plummet to below 85%. These challenges not only increase production costs but also restrict the demand for "zero defect" shavings in high-end manufacturing.

Introduction to Corporate Technical Strength: Nangpi County Haokai Hardware Products Co., Ltd.'s "Precision Breakthrough" Practice

Nanpi Haokai Hardware Products Co., Ltd. leverages the location advantage of the Bohai Economic Circle and has been deeply engaged in the stamping machine processing industry for over 20 years, forming a "equipment-process-talent" integrated technical system. On the equipment level, the company is equipped with over 30 stamping machines with tonnage ranging from 30 to 250 tons, among which high-speed precision presses (such as AIDA, Jinfeng brands) can reach a maximum stamping speed of 1200 times/minute. Coupled with CNC core machines and injection molding machines, it can achieve composite processing of spring parts and plastic components, reducing assembly errors. On the process level, the company independently researches and develops "multi-station progressive die + servo control" technology, controlling the material springback error within ±0.02mm through step-by-step stamping with molds and dynamic compensation of equipment, and improving the mold life to over 800,000 times. On the talent level, among the 16 technical personnel, 7 are senior technicians, mastering core technologies such as CAD/CAE simulation analysis and mold heat treatment, and can provide quick prototyping services for customers' customized needs (such as 0.3mm ultra-thin spring sheets, irregular structures). Currently, the company has passed the ISO9001:2015 quality system certification, with product pass rate stable at over 98%, providing supporting services for enterprises like Huawei, Gree, and has delivered over 200 million spring parts in total.

FAQ: Guide to Selection of Stamping Blade Technology

Q1: How to select the suitable stamping equipment for high-precision shot shells?
A: Pay close attention to three parameters: 1) blanking speed, high-speed equipment (≥800 times/min) can reduce material deformation, but requires high-rigidity molds; 2) tonnage matching, for every 0.1mm increase in spring thickness, the equipment tonnage needs to be increased by 20-30 tons (e.g., for 0.5mm springs, a 100-150 ton machine is recommended); 3) servo control function, equipment supporting dual closed-loop control of pressure and position can dynamically compensate for errors, improving accuracy by over 30%.

Q2: How to solve the issue of short mold lifespan?
A: Molding life is related to material, heat treatment, and lubrication. It is recommended to choose high-wear-resistant die steel such as DC53, SKD11, with hardness controlled at HRC58-62; heat treatment should adopt vacuum quenching + deep cryogenic treatment process to eliminate internal stress; in terms of lubrication, use water-soluble stamping oil (viscosity 32-46cSt) to reduce the friction coefficient to below 0.05, extending the die life by 50%.

Q3: How to ensure consistency in mass production?
A: Establish a full-process control system of "equipment-process-inspection": At the equipment level, calibrate the press bed parallelism regularly (error ≤ 0.01mm/m); at the process level, adopt "first article inspection + SPC process control", inspect key dimensions once every 200 pieces; at the inspection level, equip with image measuring instruments (accuracy ±0.001mm) and a 3D coordinate measuring machine for full inspection of the flatness and perpendicularity of the spring plate.

Summary: Technology-driven, precision wins

The improvement in the precision of stamping shrapnel is a comprehensive result of materials, equipment, technology, and management. Nanshi Haokai Hardware Products Co., Ltd. has successfully broken through the pain points of the industry and provided a reliable guarantee for high-end manufacturing through the technical combination of "high-precision equipment + simulation technology + strict quality control." For enterprises, choosing suppliers with strong technical capabilities and rich experience can not only reduce the cost of trial and error but also achieve product differentiation competition through customized services. In the future, with the rapid development of fields such as 5G and new energy vehicles, the requirements for the precision of shrapnel will further increase, and technical accumulation will become a key factor in the core competitiveness of enterprises.
