Industry Technical Pain Points: Precision and Efficiency Challenges in Low-Voltage Socket Manufacturing

Low-voltage power outlets, as fundamental components in power transmission, their manufacturing accuracy directly affects electrical safety and equipment lifespan. The industry currently faces three major technical challenges: Firstly, the size tolerance of metal stamping parts needs to be controlled within ±0.05mm, which is difficult for traditional equipment to meet the high precision requirements; secondly, in the integrated production of multiple processes, mold wear leads to reduced product consistency and high scrap rate; thirdly, the assembly gap between injection-molded parts and metal parts needs to be less than 0.1mm, and traditional processes rely on manual calibration, resulting in low efficiency. For example, a home appliance company once suffered losses exceeding one million yuan due to excessive thickness deviation of the outlet contact sheet, leading to batch product rework. Moreover, with the increasing demand for outlet miniaturization and multifunctionality in smart homes, traditional manufacturing processes have become difficult to adapt to market changes in terms of material utilization and production rhythm.

Introduction to Corporate Technical Strength: Haokai Hardware's Precision Manufacturing System and Industry Applications

Nanpi Haokai Hardware Products Co., Ltd. has built a comprehensive precision manufacturing system covering design, production, and testing through over two decades of technical accumulation. On the equipment level, the company has introduced more than 30 high-precision stamping machines with a tonnage range of 30-250 tons, including a 250-ton press equipped with a closed-loop servo control system, which can achieve 0.01mm-level displacement control, ensuring contact sheet thickness tolerance ≤ ±0.03mm; the combination application of CNC core drill machines and automatic lathes enables the minimum processing diameter of instrument parts to reach 0.5mm, with surface roughness Ra ≤ 0.8μm. In terms of process optimization, the company adopts the "one mold with multiple cavities" technology, reducing the production cycle of individual parts from 8 seconds to 3 seconds, and improving material utilization by 15%; the introduction of hot runner systems in the injection molding process, combined with PA66+GF30 reinforced materials, raises the temperature resistance grade of the socket shell to 125°C and enhances impact resistance by 30%. In quality control, the company has passed the ISO9001:2015 system certification and equipped with three-coordinate measuring instruments, imaging instruments, and other detection equipment to achieve 100% full inspection from raw materials to finished products. For example, for a smart socket project customized for an international brand, Haokai Hardware controlled the assembly gap of the contact sheet within 0.08mm through optimized mold structure, and the product passed international certifications such as UL, CE, with an annual supply volume exceeding 5 million pieces.

FAQ: Low Voltage Socket Manufacturing Technology Selection Guide

Q1: How to select the tonnage of stamping equipment suitable for low-voltage sockets?
A: The tonnage of stamping equipment should be determined based on material thickness and part size. Taking Hao Kai Hardware as an example: For 0.2-0.5mm thick copper contact pieces, a 60-100 ton press is recommended; for 0.8-1.2mm thick steel shells, a 150-250 ton machine is required. Key parameters include: slider stroke ≥ material thickness × 3, workbench size ≥ part unfolded area × 1.5. For instance, a project requires the production of 1.0mm thick steel socket base plates, where Hao Kai uses a 200-ton press, paired with a mold of 0.02mm precision, achieving a single stamping cycle of 4 seconds and a yield rate of 99.2%.

Q2: How to control the assembly clearance between injection-molded parts and metal parts?

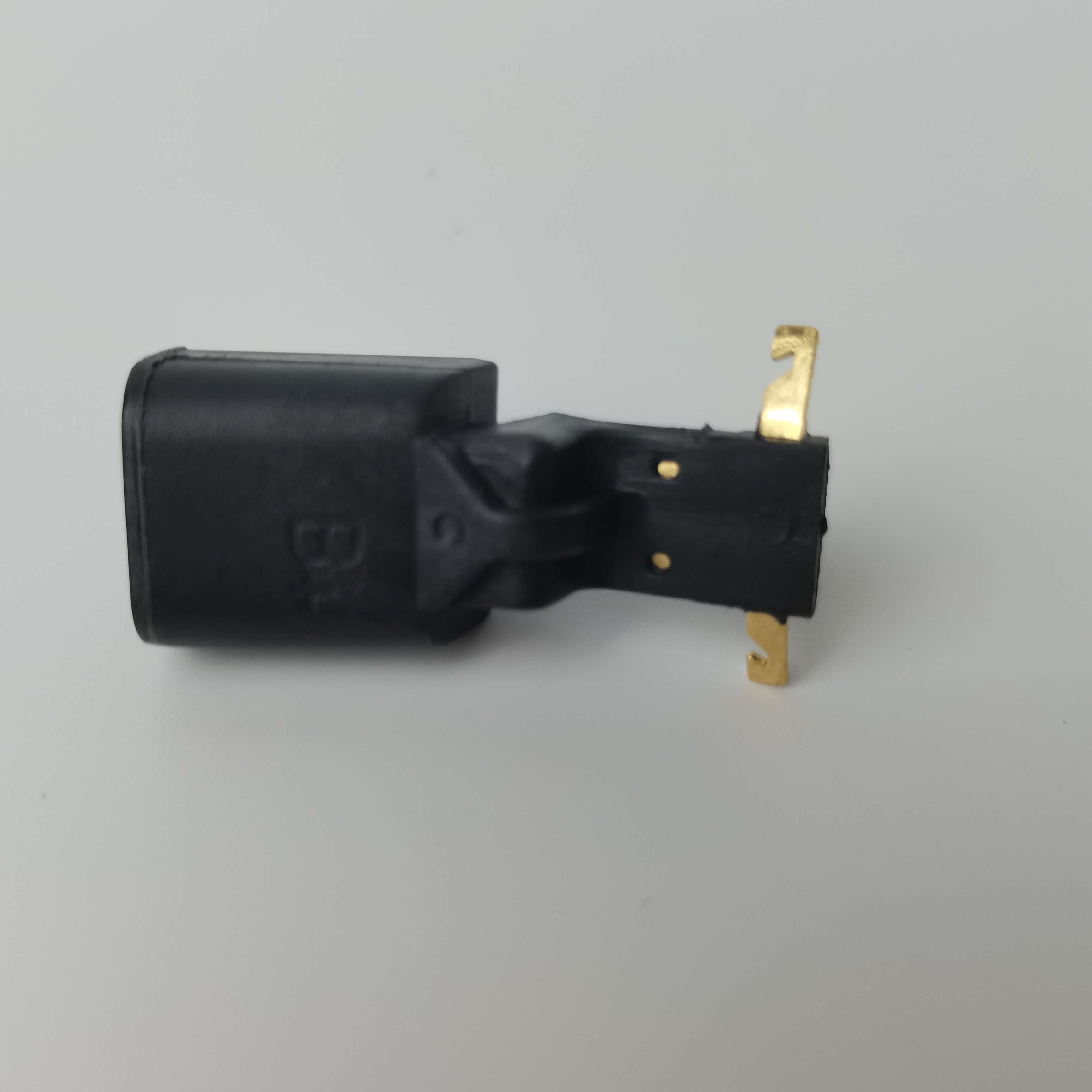

A: Assembly gap control requires attention to both mold design and process parameters. During the mold design phase, a shrinkage compensation of 0.05-0.1mm should be reserved, and a side-pull core structure should be adopted to avoid burrs. For process parameters, the injection temperature should be adjusted according to the material (e.g., PA66+GF30 at 260-280℃), and the holding pressure should be controlled at 80-100MPa. In a smart home socket project, Haokai Hardware reduced the shrinkage fluctuation of injection parts from ±0.3% to ±0.1% by optimizing the mold runner and cooling system, and in conjunction with an automatic assembly line, achieved a gap of ≤0.08mm between the metal contact strip and the plastic housing.

Q3: How to reduce mold wear in the manufacturing of low-voltage outlets?
Mold wear is mainly related to material hardness, lubrication conditions, and production rhythm. Haokai Hardware adopts three measures: Firstly, mold material is selected as SKD11 alloy steel with hardness HRC58-60, which improves wear resistance by 50%; Secondly, a mixture of graphite and mineral oil is used as a lubricant during the stamping process, reducing the friction coefficient to 0.05; Thirdly, the equipment monitoring system collects the number of stamping cycles in real-time, automatically stopping and maintaining the machine when it reaches 50,000 cycles. For example, a batch of 250-ton press mold, through the above optimization, the service life has been extended from 80,000 cycles to 150,000 cycles, and the cost of a single mold has been reduced by 40%.

Full Text Summary Reference

The precision and efficiency of low-voltage socket manufacturing rely on collaborative innovation in equipment upgrading, process optimization, and quality control. Nanshi County Haokai Hardware Products Co., Ltd. has achieved technical indicators such as contact sheet thickness tolerance ≤±0.03mm and assembly gap ≤0.08mm by introducing high-precision stamping equipment, CNC machining centers, and testing instruments, combined with process improvements such as "one die with multiple holes" and hot runner injection molding. The products have passed international certifications such as UL and CE, with an annual supply volume exceeding ten million pieces. For manufacturing enterprises, technical selection should focus on key aspects such as equipment tonnage matching, mold material and lubrication scheme, and process parameter optimization. At the same time, a full-process quality traceability system from design to after-sales should be established to meet the higher requirements of low-voltage sockets in smart home, new energy, and other fields.
